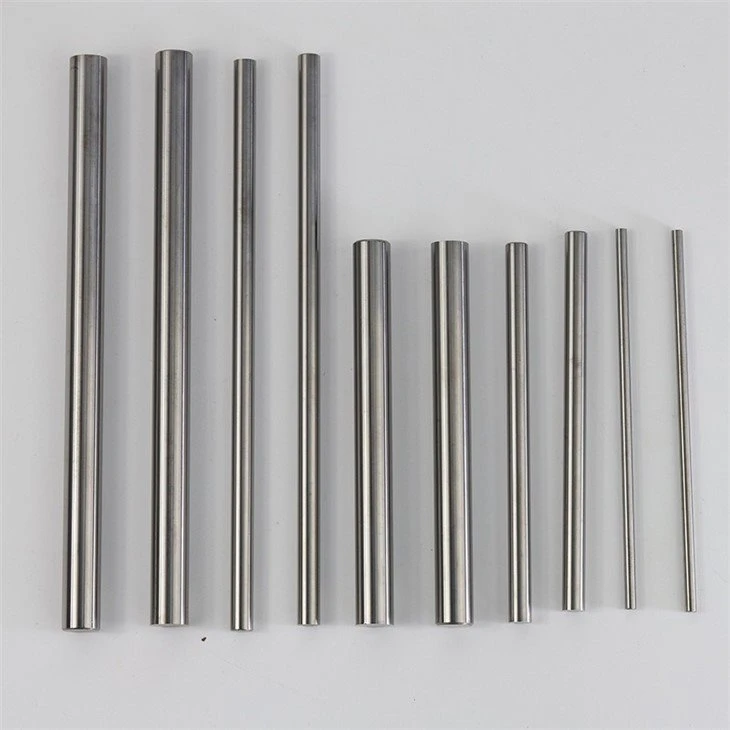

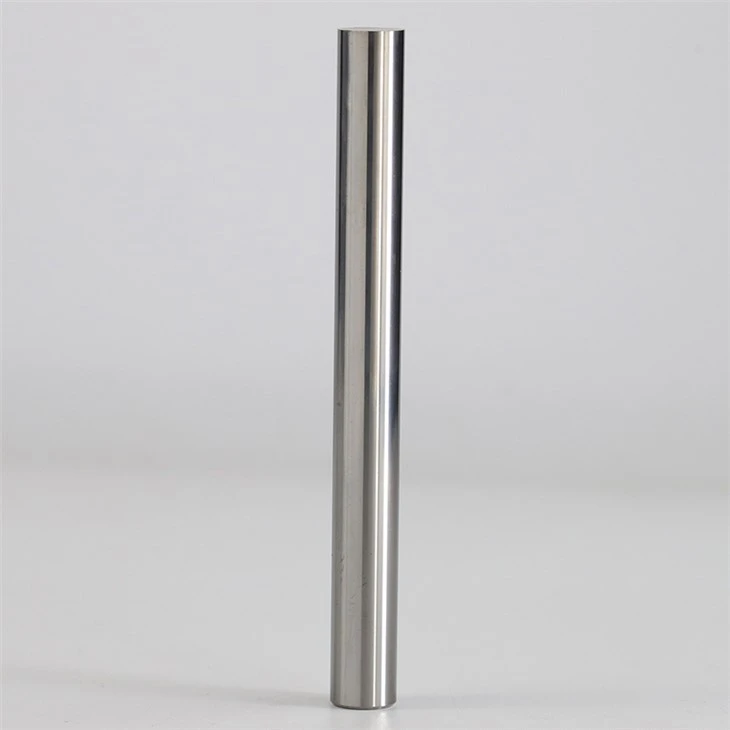

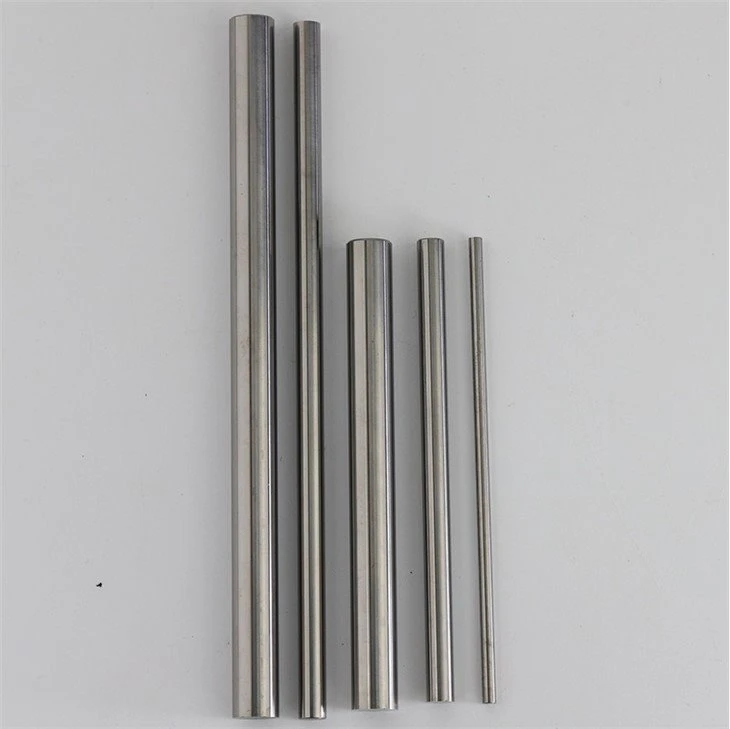

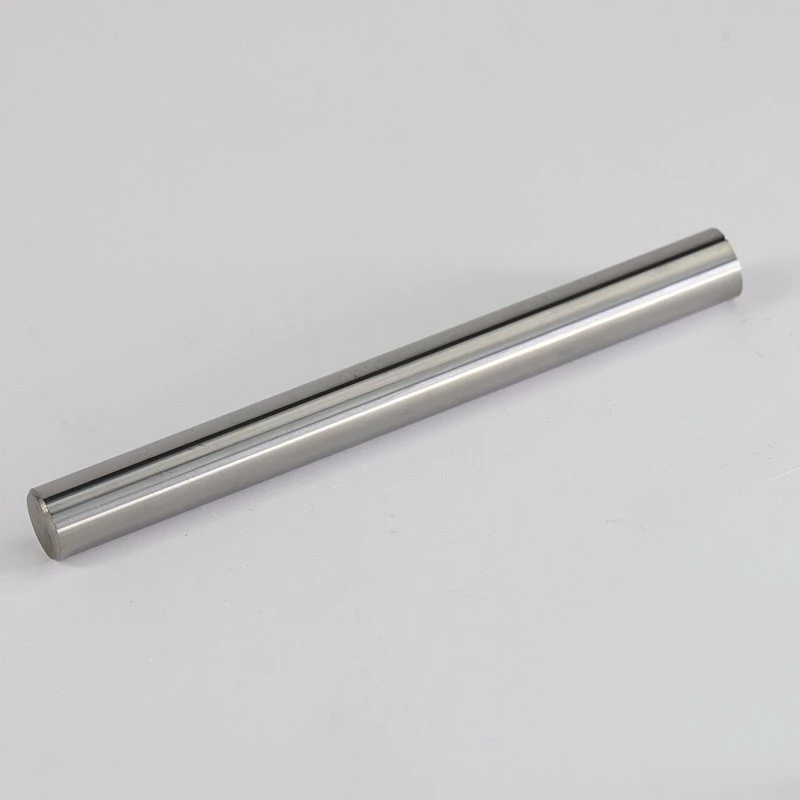

Cemented Carbide Rods

Cemented Carbide Rods are hard alloy round rods, also known as tungsten steel rods. In short, they are tungsten steel round rods or carbide round rods. Cemented carbide is produced by powder metallurgy from refractory metal.

Product Description

The Specification of Cemented Carbide Rods:

WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.

Diameter range: 0.33mm--60mm;

Length range: 3mm--700mm;

Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9).

Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after accurate grinding)

Becides, We can understake order of non-standard size work.

Applications of tungsten carbide rod

solid tungsten carbide rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel-based alloy, titanium alloy, and nonferrous metals. Various carbide grades with stable properties have been widely recognized by worldwide makers of tools. Besides, solid tungsten carbide rods are widely used processed as HSS Cutting tool, carbide end mills, carbide cutting tool, NAS cutting tool, carbide end mill, aerospace cutting tool, carbide drill, high speed steel, milling cutter Core drill, tapered end mills, metric end mills, miniature end mills, pilot reamer, electronics cutter, step drill, metal cutting saw, double margin drill, gun barrel, angle milling cutter, carbide burrs, carbide tipped cutter.

For PCB drills, micro drills, end mills, and reamers, mold punches, core pins & hole drilling tools Submicron grade features in high wear resistance, toughness & combination abilities Good straightness, the roughness and surface roughness of finish ground rods are satisfactory. Advanced production technology, automatic pressing, HIP sintering, and precision grinding.

All our solid tungsten carbide rods are made from extrusion method and HIP Sintered, with excellent quality and performances.

KinBoLon Factory

Supply Ability

Supply Ability: 1200 Ton/Tons per Year tungsten carbide blank

Packaging & Delivery

Packaging Details: Carton and plywood case, suitable for internationl delivery (Air and sea transportation).
